S-Series xTool F1 Ultra Extended High Density Fixture
S-Series xTool F1 Ultra Extended High Density Fixture plates retain the "Stock" Fixture holes of the F1 Ultra. While you'll loose a few of the high desnsity fixtur holes, you'll retain the ability to use fixtures that were designed for the stock F1 Ultra bed. S-Series HDFPs are compatible with Samcraft 3d printed jigs!
Adding a High Density fixture plate to your xTool F1 Ultra is a great way to expand your laser's functionality. The vast majority of fiber lasers utilize the popular M6x25 bolt pattern and there are hundereds of accessories and jigs availble using that pattern. Our Extended F1Ultra HD Laser Fixture is designed to allow you to use those fixtures and accessories. In addition to M6 threaded holes, the HD Fixture pattern has precision 6mm dowel holes for tool-less fixturing that can elminate the need for most custom jigs. Our High Density pattern consists of holes spaced at 12.5mm doubling your mounting options and making it compatiable with all accessories and jigs based on an M6x25 or M6x50 pattern.

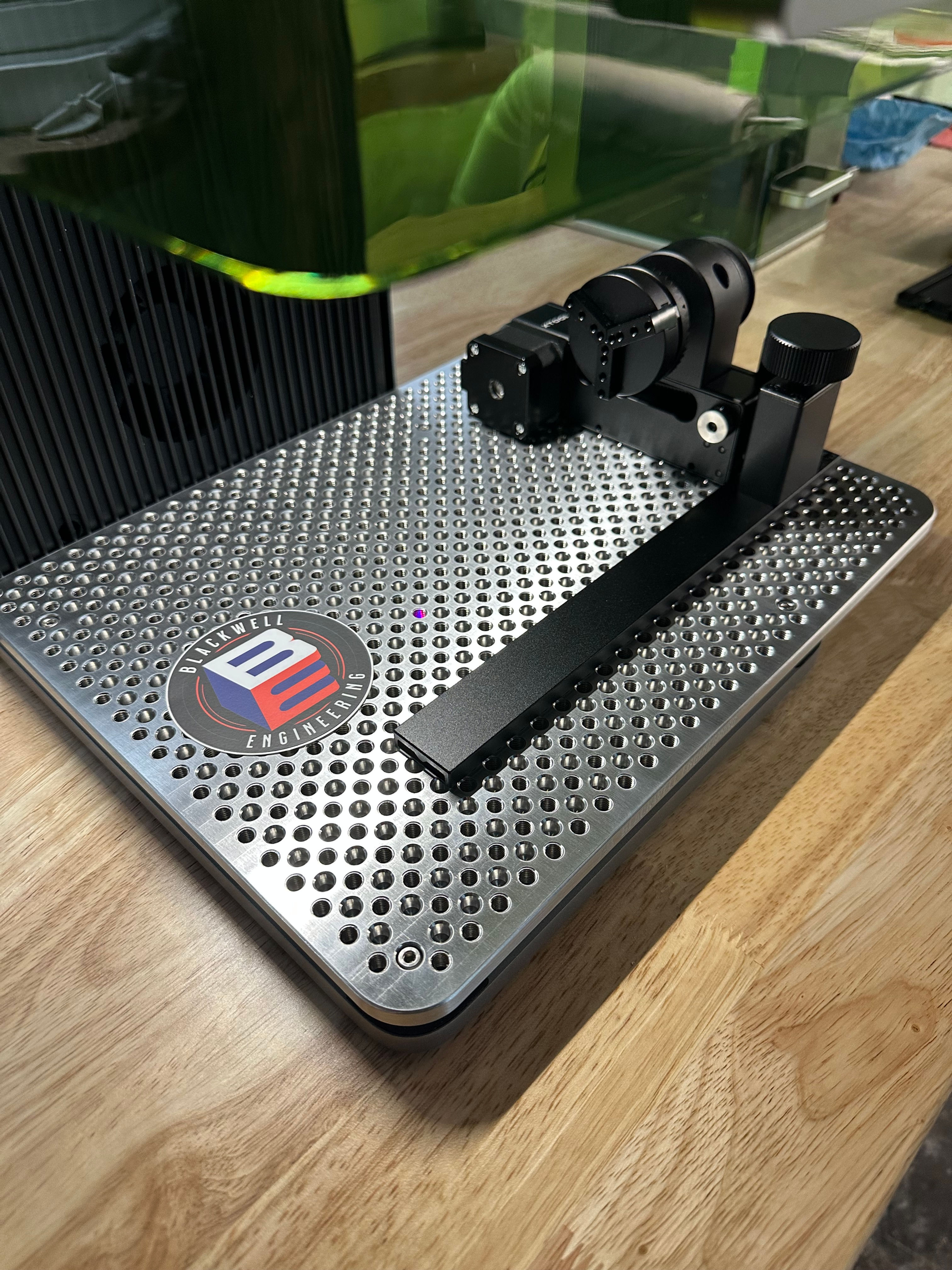

The Extended fixture plate supports your rotary device without the need for any additional fixtures, risers, or support. When not using the rotary, the additional real estate can be used for hardware storage, or fixturing larger items.
Don't need the additional size? Check out the S-Series XTool F1 Ultra Standard HD Fixture.
Features:
- Larger work surface for large items and rotary devise support.
- Cross compatibility with thousands of existing jigs and accessories.
- Dowel holes for tool-less part fixturing.
- Eliminate custom jigs for any flat bottom part.
- Protect your original bed from stray laser burns
Specifications:
- Dimensions: 345mm x 269 mm 8.5mm
- 540 M6 tapped holes on 12.5mm centers
- 508 Precision 6mm holes on 12.5mm centers
- 45 M4 tapped holes on 35mm centers (stock F1U locations)
- 4 M4 mounting bores 140mm x 210mm
- Includes M4 mounting hardware.
Optional Hardware Package includes:
- 2ea M6 x 10mm Thumbscrews (yellow)
- 2ea M6 x 12mm Thumbscrews (red)4ea Dowel pins
- 4ea Half-Threaded dowels
- 4ea M6 x 10 screws
- 4ea M6 x 12 screws
Additional hardware and accessories are available in the store!
